Below the surface.
Through to restoration.

The problem went beyond a blocked pipe.

Water entering the crawl space, wet ground around the house and movement at two rear corners prompted a closer investigation. Clayton’s account of the existing system describes outlets approximately six inches too high and a perimeter pipe route that rose roughly two feet before dropping again. He also describes a creek running through the backyard and a French drain connected into the house’s drainage system.

Those reported conditions explain the scope of the investigation. The photographs below document the exposed site, work in progress and reinstated surfaces.

Making room to reach the drainage.

Access involved more than digging a straight trench. The record shows concrete demolition at the front entrance, root removal beside the house and work through narrow side passages. Opening these areas exposed conditions that could not be assessed from the finished garden alone.

Documenting the foundation while it was exposed.

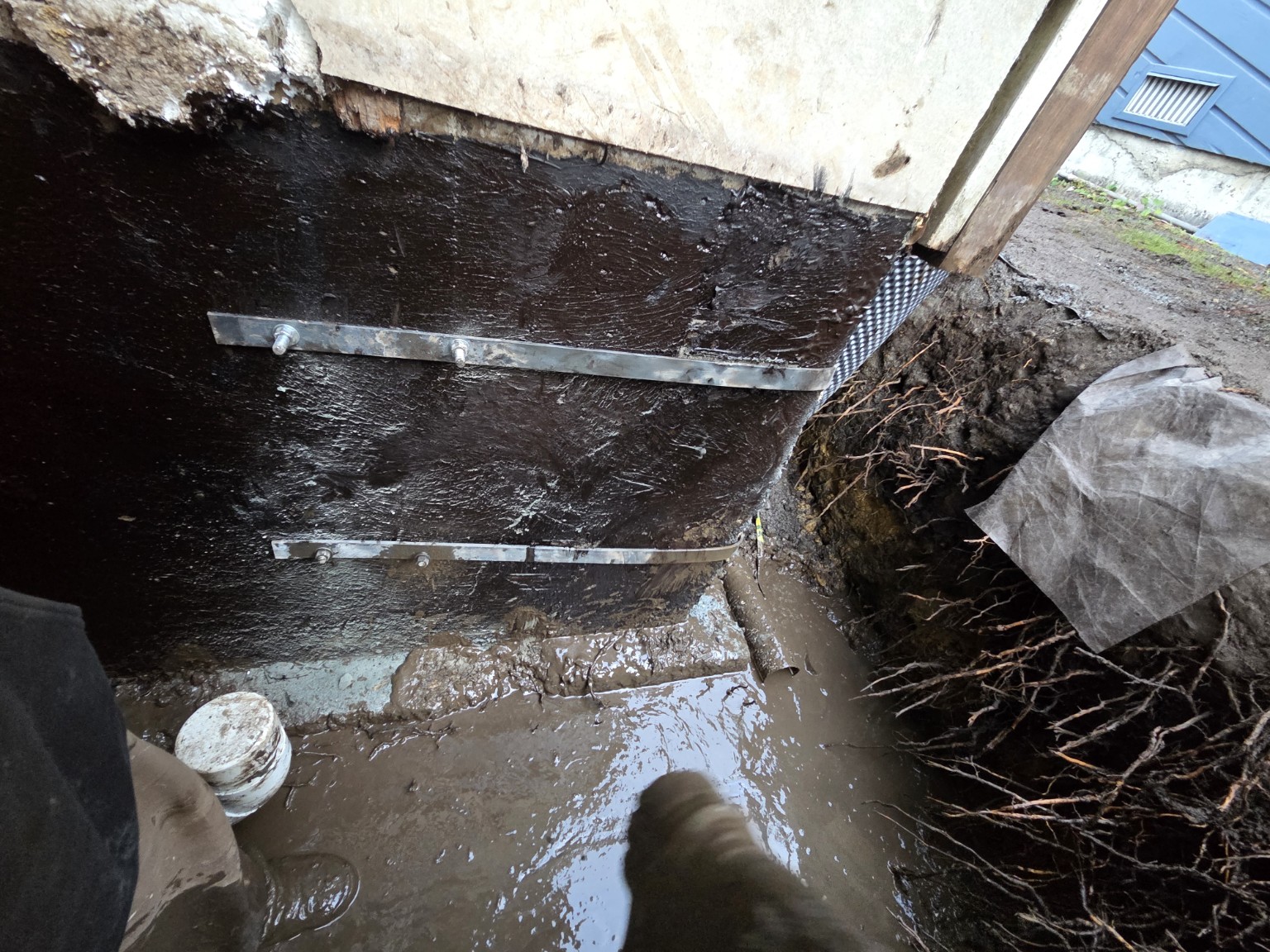

The opened excavations revealed foundation cracking. The project photographs also record corner strapping and foundation surface treatment during the work. These images show the repair stage; they do not establish the cause of the movement or a structural engineering assessment.

Pipework and foundation drainage before backfill.

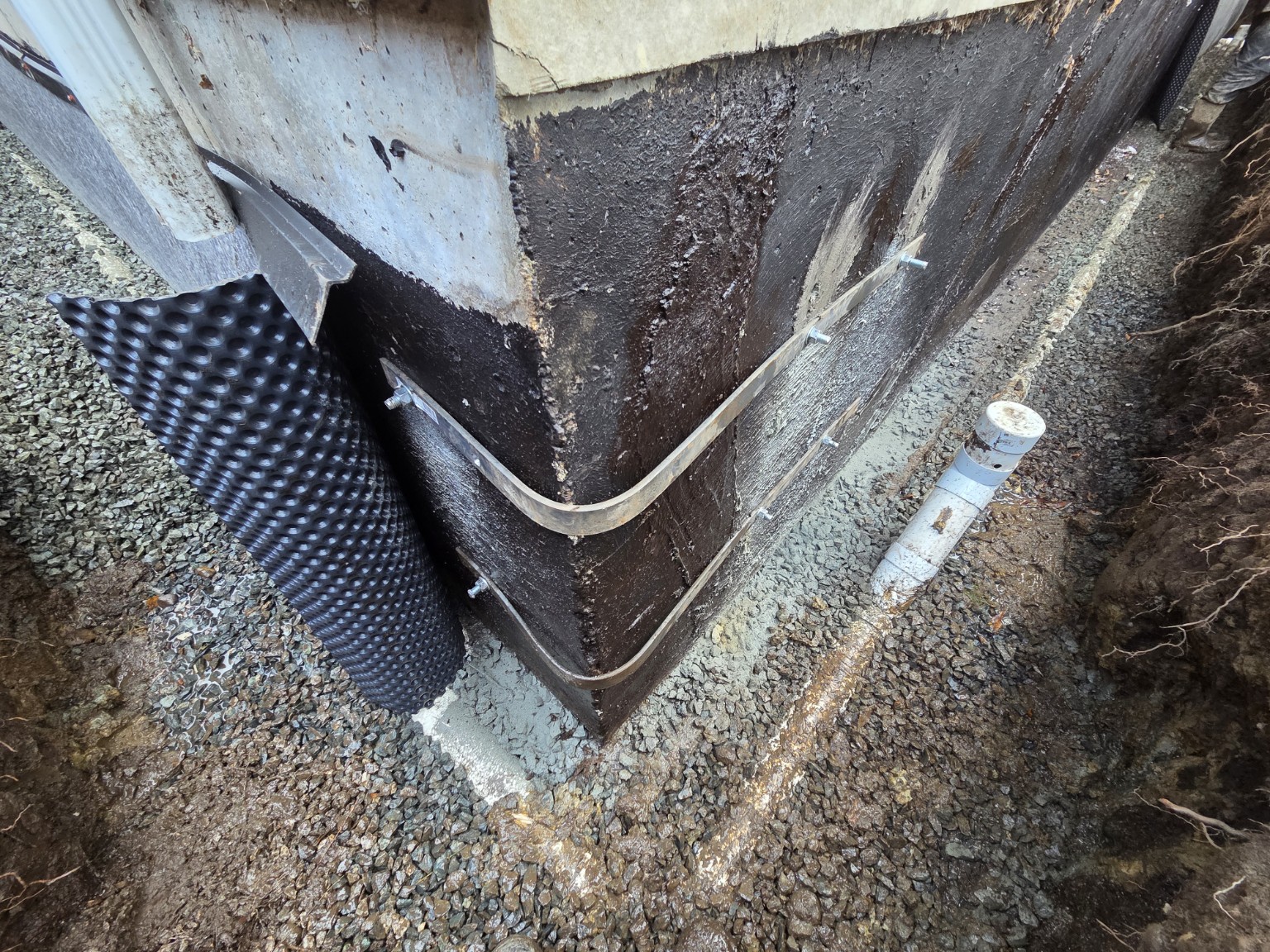

Installation photographs show pipe connections, vertical access points, drainage stone and membrane against the foundation. Recording these stages gives the homeowner a view of work that will be covered as the site is reinstated.

Access, backfill and putting the site back together.

Sections of deck were opened to reach the work area. The sequence continues through backfilling and the return of usable outdoor surfaces. Access and restoration are part of the project scope homeowners need to discuss alongside the underground work.

The visible finished result.

The later photographs show gravel paths, stepping stones and garden soil reinstated around the home. This case study records that visible completion; it does not claim a measured long-term drainage result from photographs alone.

Questions this project helps answer.

Will a drainage repair affect my deck, concrete or landscaping?

It can. This project required access through several different surfaces. Fairytale discusses the proposed access and included restoration in the scope before work begins.

Can you tell what is wrong without opening the ground?

An initial assessment and accessible camera inspection can inform the next step, but some conditions only become visible during excavation. Here, opening the ground exposed the foundation and pipe routes.

What should I ask to see before the trenches are filled?

Ask for a record of the exposed conditions, installed pipe routes and connections, access points and agreed foundation work. This project shows why progress photographs are useful.

Does every wet crawl space need this much work?

The scope depends on the property and the investigation. This is one project record, not a recommendation to repeat the same repair at every home.
