Perimeter Drain Repair & Camera Inspections in Nanaimo

Older or damaged perimeter drains can be difficult to assess from above ground. We investigate the affected section and explain what is known before defining repair work.

Request a quote Call 250-857-4567

Fairytale drainage excavation beside a home

Drainage & subsurface forensics gallery

A visual walkthrough of access, exposed drainage problems and installation details from separate Fairytale jobs over time. Each repair scope follows the conditions found on that property.

1. Access and site conditions

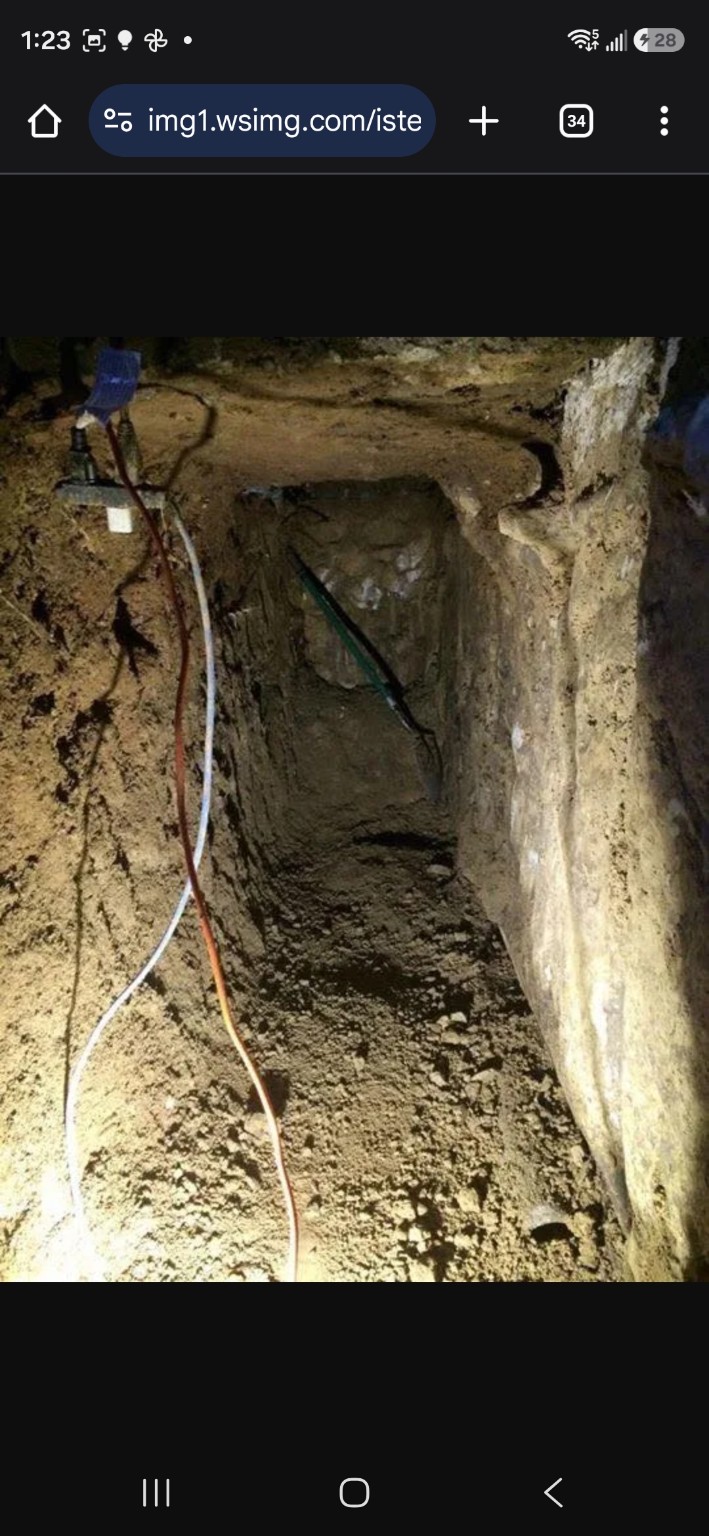

Excavated access beneath an existing sidewalk and deck to reach perimeter drains — **Access beneath an existing sidewalk**Excavation beneath a sidewalk that the homeowner’s deck/patio was built on, to reach the perimeter drain.

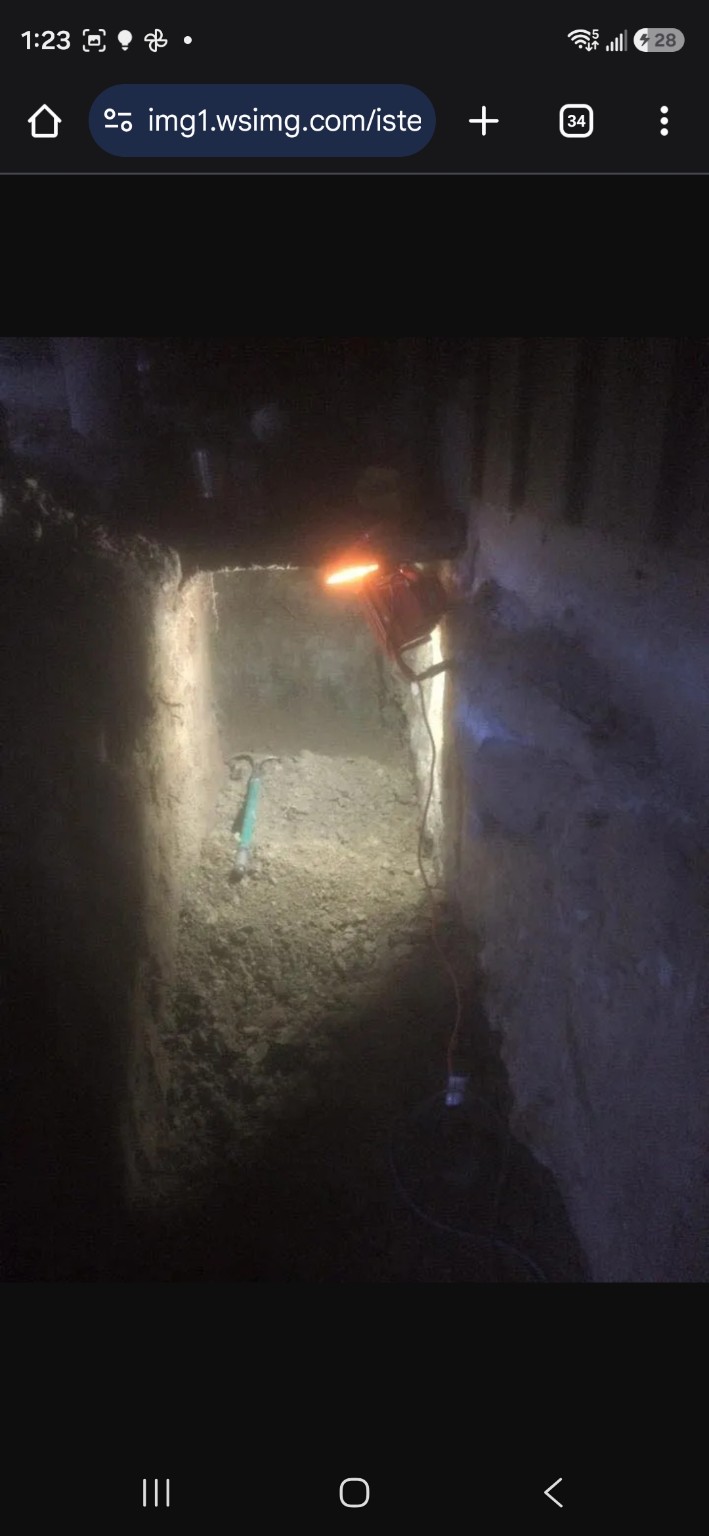

Work-lit excavation beneath the sidewalk for perimeter drain access — **The same access excavation**A second view of the under-sidewalk access with work lighting.

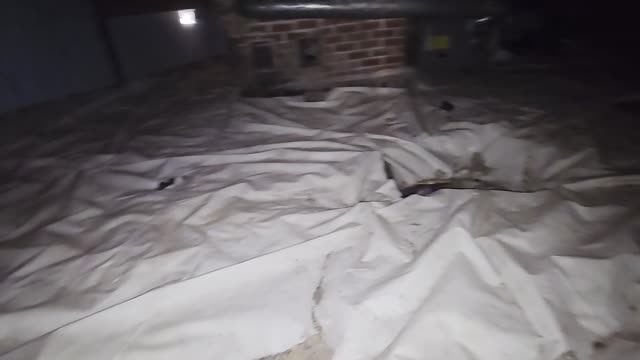

Crawl-space ground covering and brick support photographed during Fairytale site work — **Crawl-space conditions**A still from Clayton’s crawl-space footage showing the interior conditions.

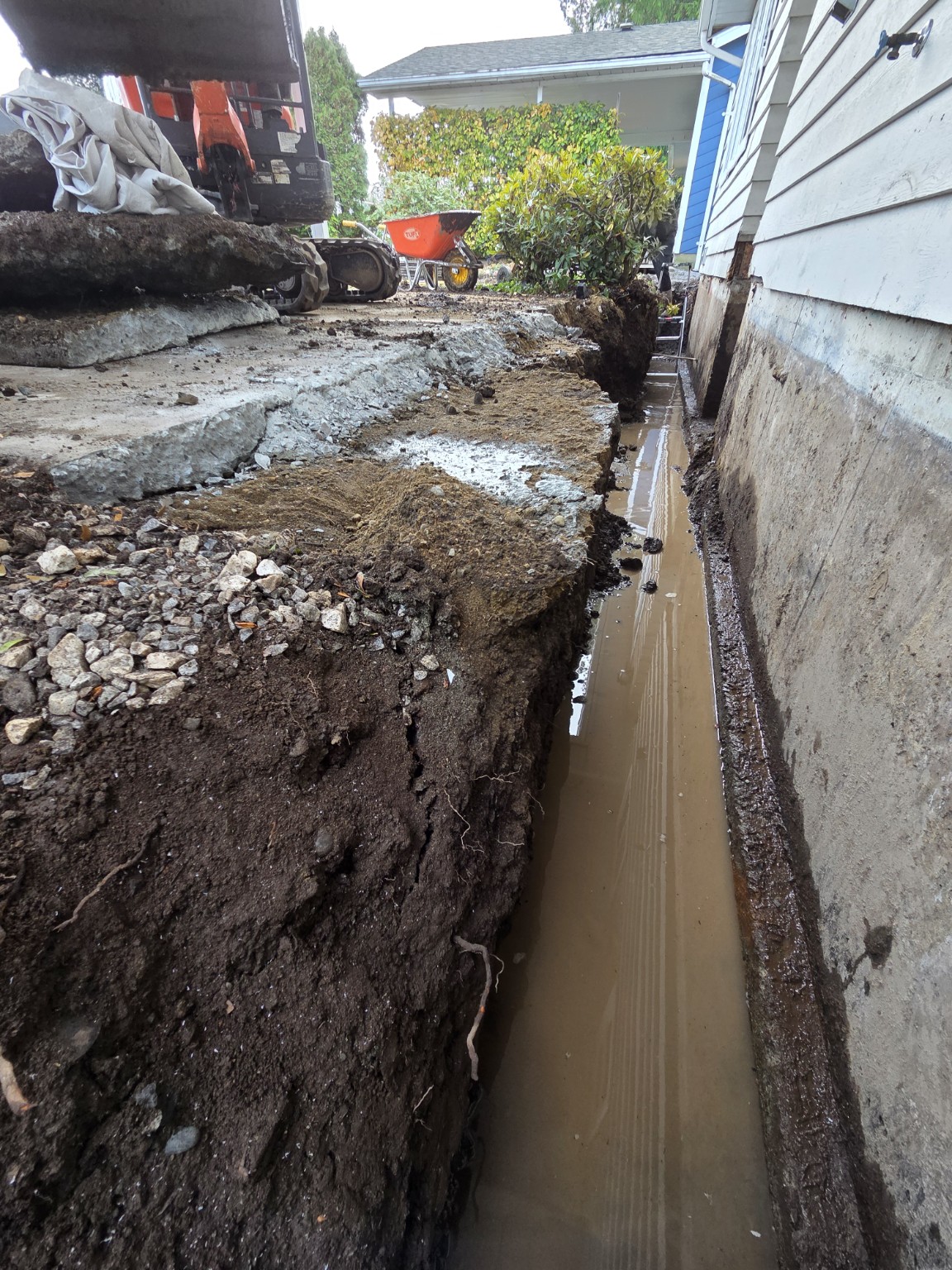

Open drainage trench beside a house with an excavator at the access end — **Foundation trench excavation**Excavation alongside the house during drainage work, with standing water visible in the open trench.

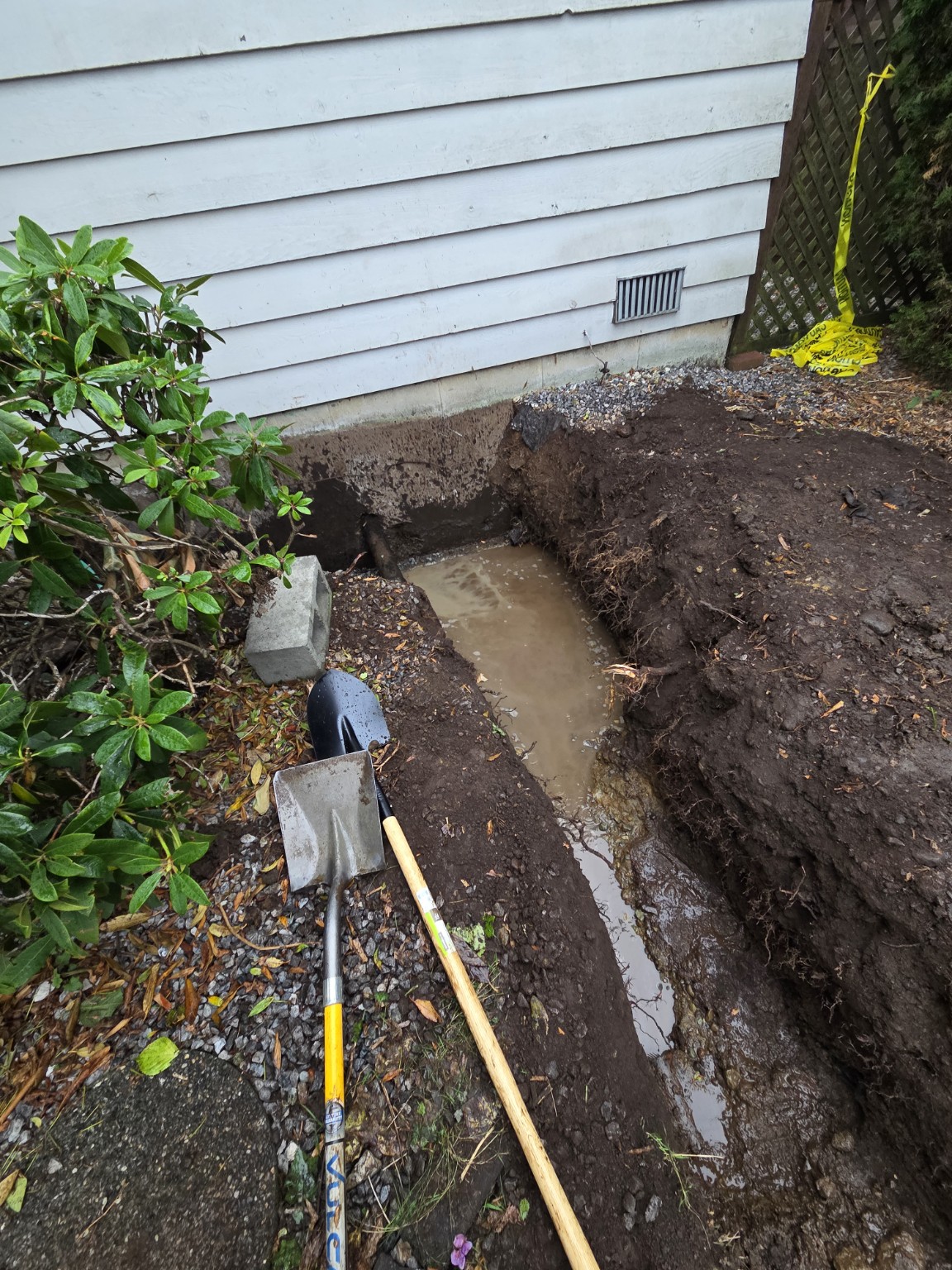

Excavated foundation drainage route with standing water and hand tools — **Exposed foundation drainage route**An additional view of the excavation and site conditions during drainage work.

2. Exposed problems and repair details

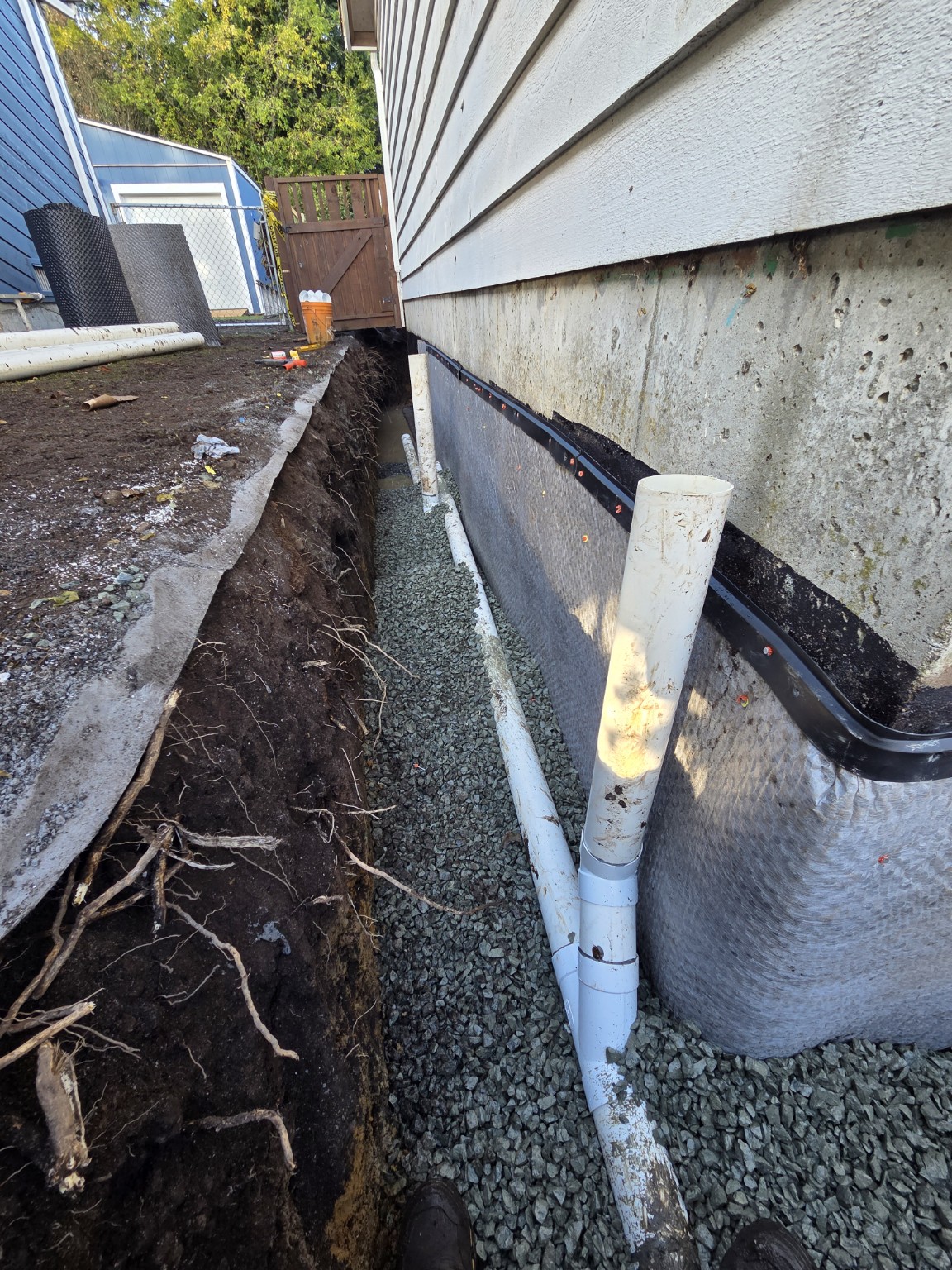

Perimeter drain pipe and risers in aggregate beside a foundation membrane — **Perimeter drainage before backfill**White drainage pipe, vertical risers, aggregate and foundation membrane visible during installation.

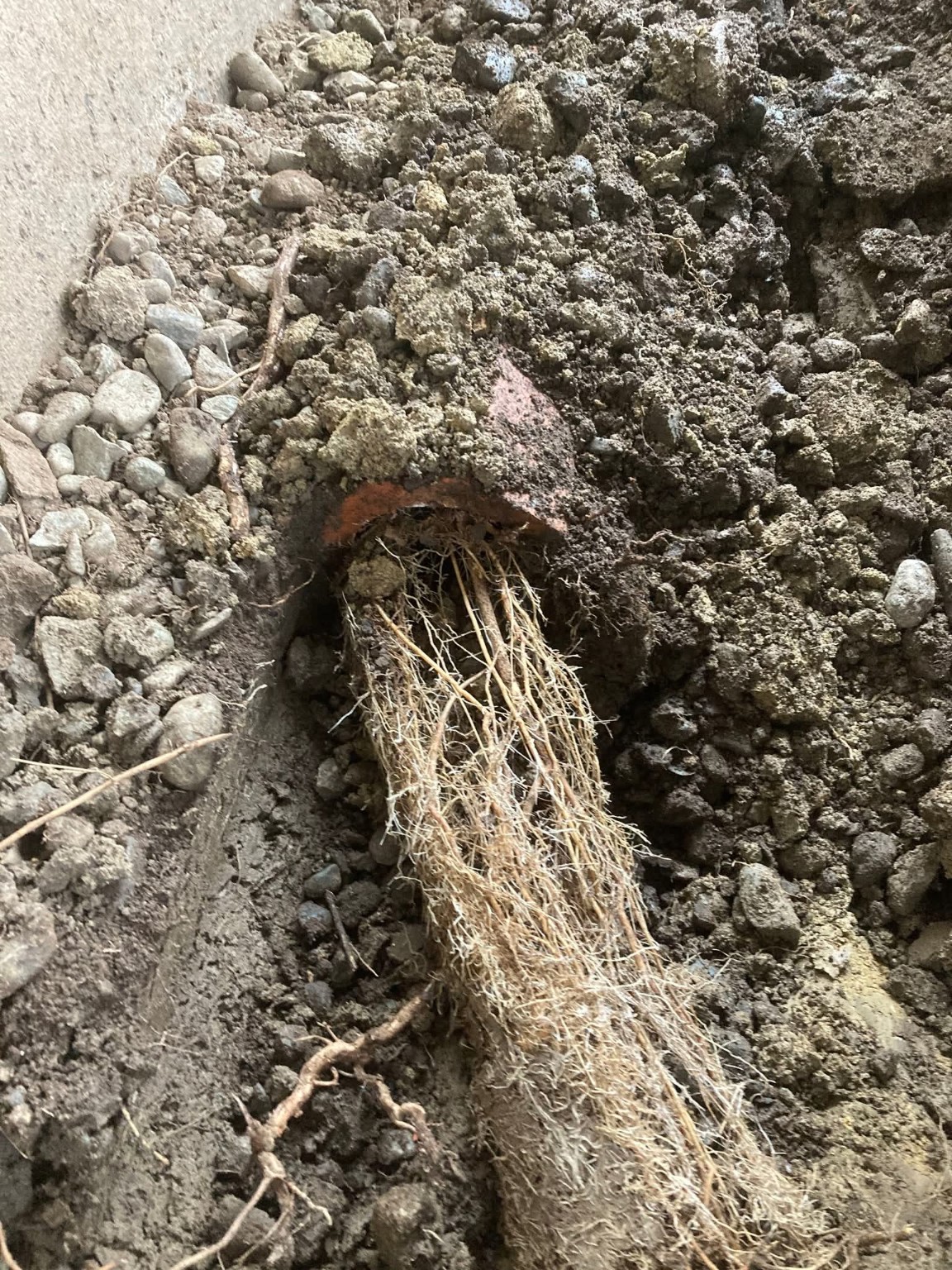

Root-clogged clay perimeter drain pipe exposed during drainage investigation in Nanaimo — **Expose the obstruction**Roots visible inside an exposed clay drain pipe.

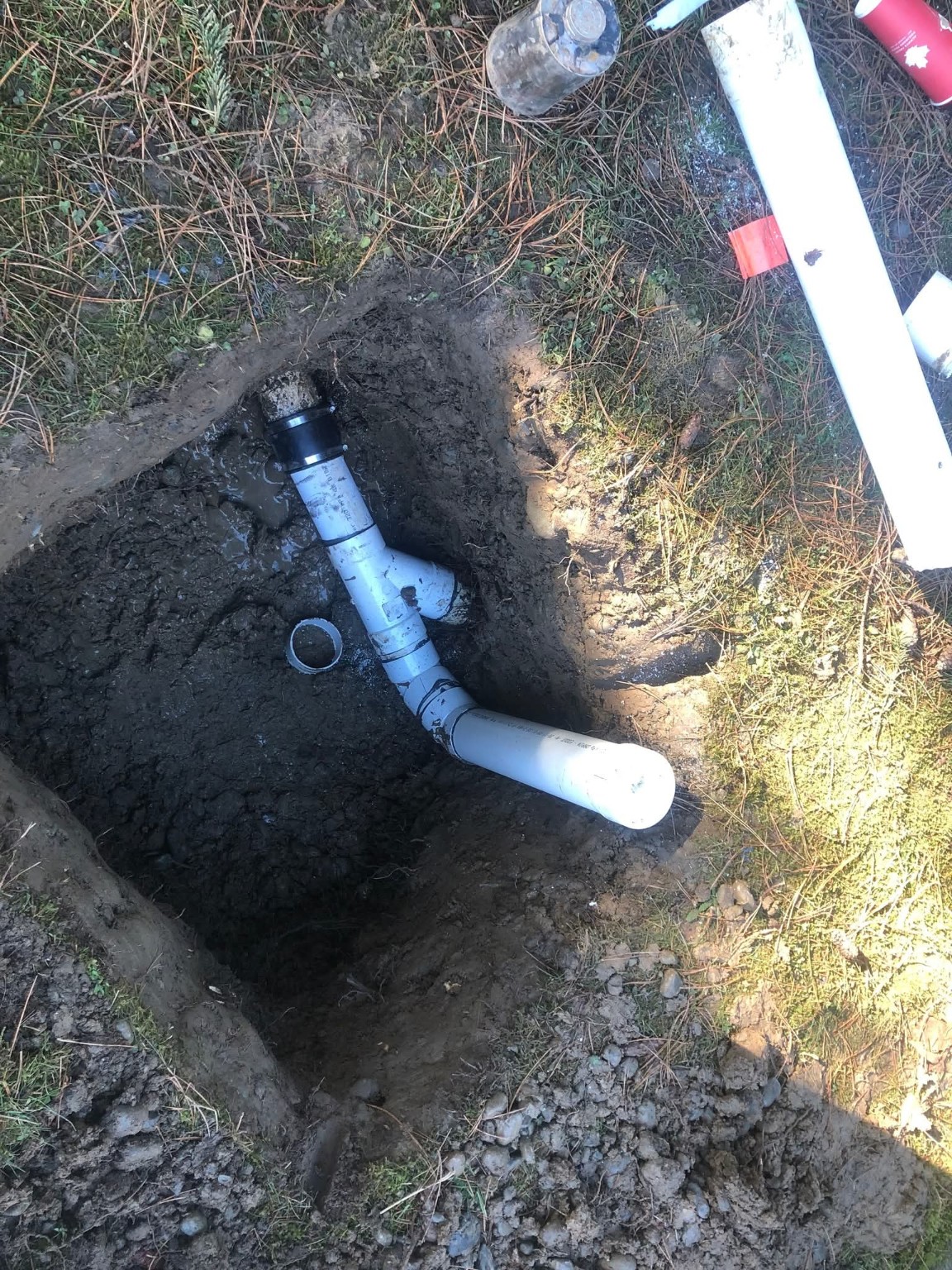

White PVC drainage fittings and pipe connections during perimeter drain repair — **Inspect and connect pipework**Rigid white PVC fittings and connections exposed in the excavation.

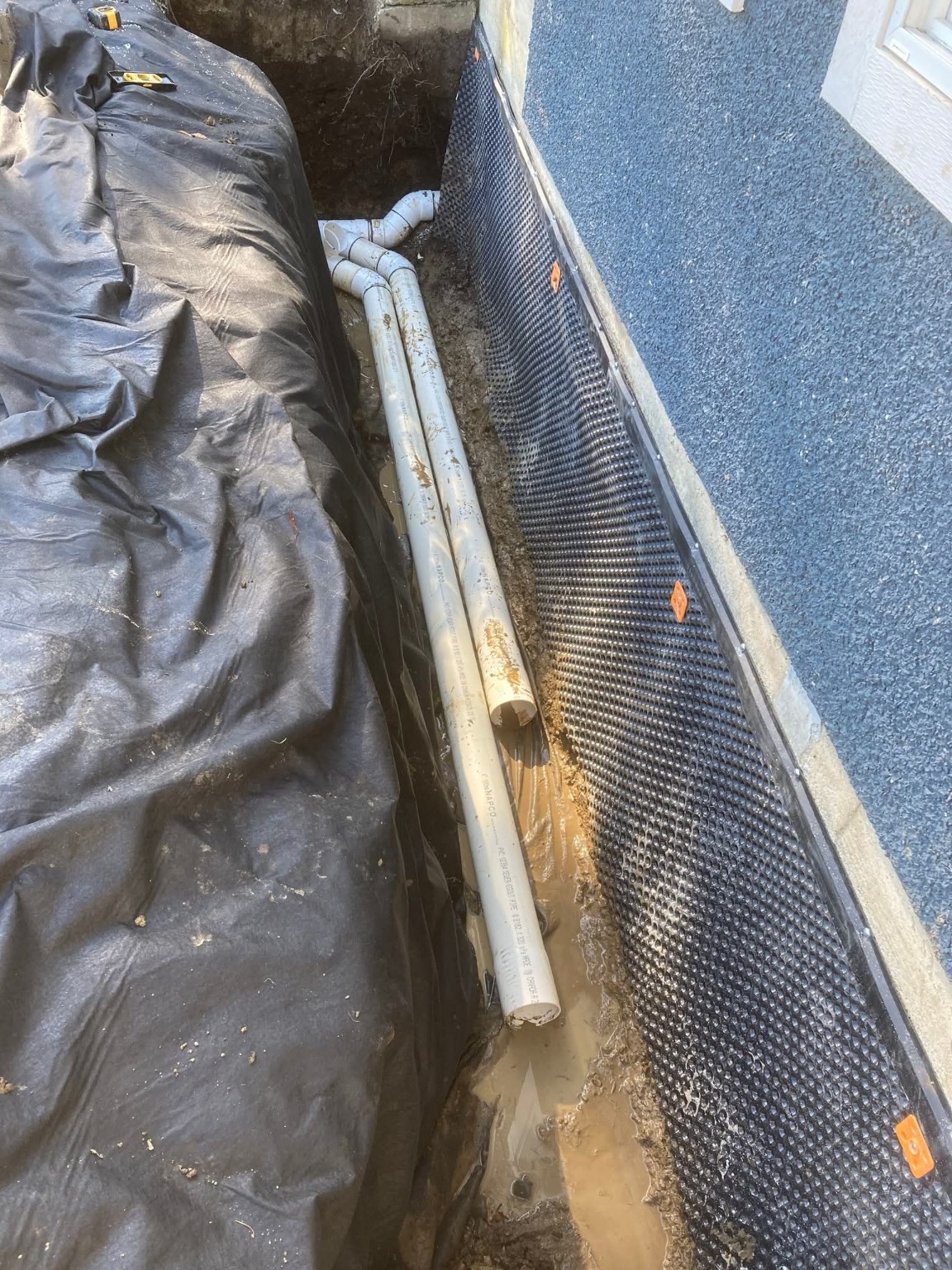

Dimpled foundation drainage membrane beside white PVC pipes in a perimeter trench — **Foundation drainage details**Dimpled foundation membrane and pipework visible before backfill.

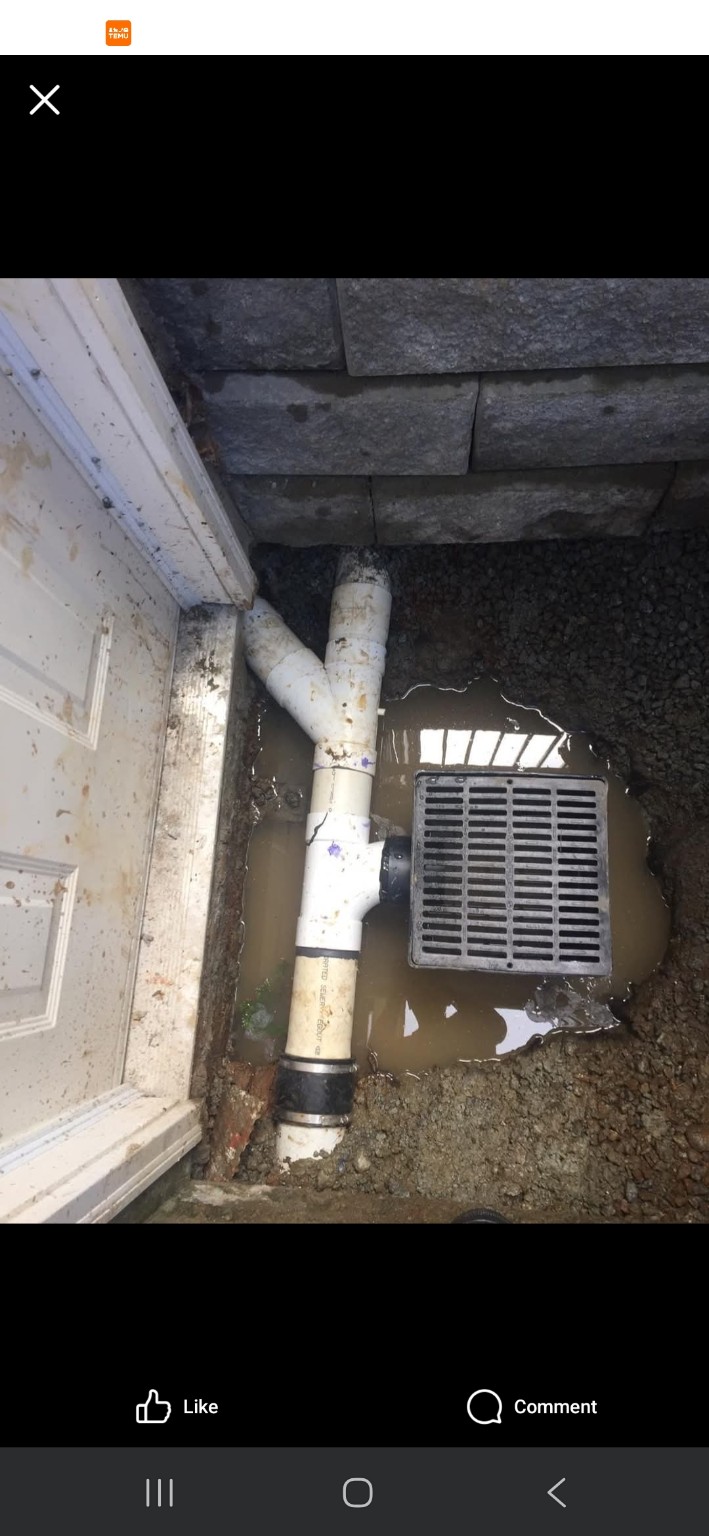

Catch basin and white PVC drainage connections beside a building — **Surface-water collection**Catch basin and PVC connections exposed beside the building.

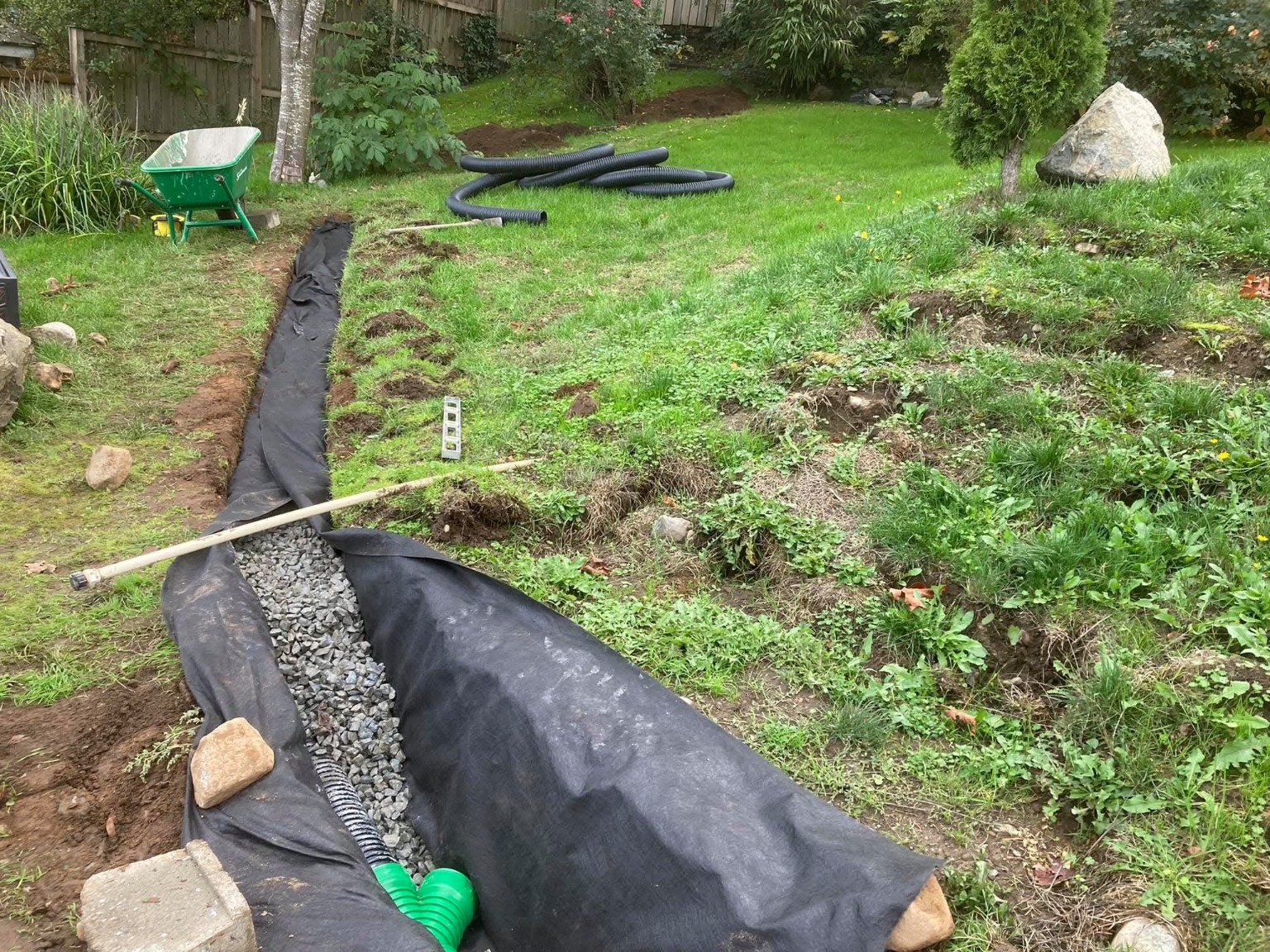

French drain installation with geotextile, aggregate, black pipe and a green pipe junction — **French drain installation in progress**Geotextile lining, drainage aggregate and corrugated pipe with a green junction, shown before the trench is covered.

Community advocacy · Inspection case study

Advanced Subsurface Diagnostics & Community Health Advocacy

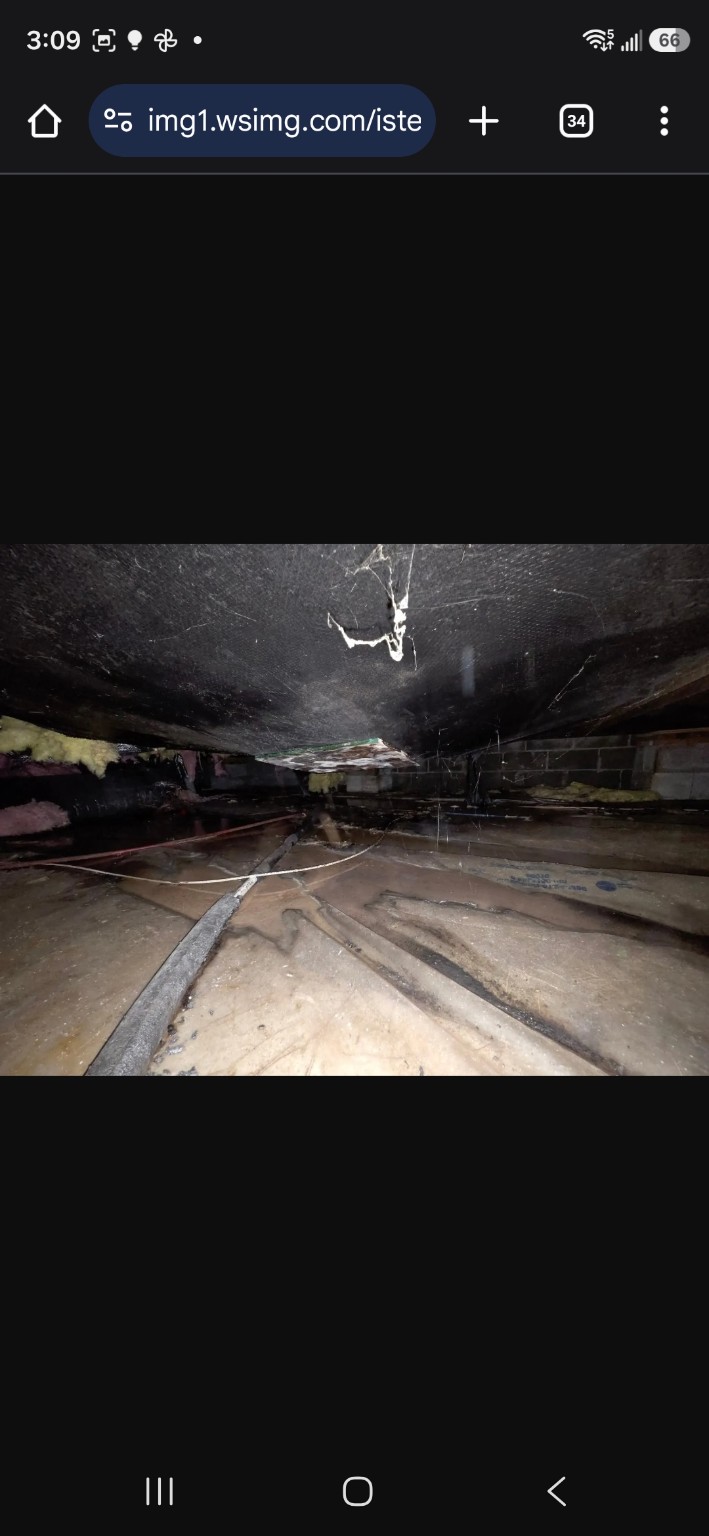

Crawl space sewer line repair and drainage forensic inspection in Nanaimo, BC. — Crawl-space conditions photographed during Clayton’s inspection. Fairytale’s role in this case was inspection, written documentation and advocacy to help the homeowner obtain repairs.

The scenario

A First Nations homeowner on a local Mid-Island reserve contacted Fairytale after encountering difficulties arranging assistance for a problem beneath her home. She needed the conditions inspected and clearly documented so the issue could be addressed.

Our inspection findings

Clayton’s crawl-space inspection identified a broken sewer line and wastewater beneath the home. He documented the conditions and raised health and safety concerns requiring prompt attention.

Our technical intervention

Clayton prepared a formal letter to the community’s Chief and administration, setting out his findings, the health and safety concerns and the need for repair. This gave the homeowner written support when seeking action.

The outcome

According to Clayton’s account, the homeowner was subsequently able to get the problem addressed and the sewer line fixed. This case shows the practical value of a thorough inspection and clear written findings when a homeowner needs help moving a repair forward.

Perimeter drainage: investigate, define, repair.

Fairytale Landscaping & Drainage investigates and repairs perimeter drains around homes in Nanaimo and the mid-Island. Water beside the foundation, recurring blockages or moisture entering a crawl space warrant a closer look at the drainage system. The first task is to understand the affected area and available evidence before deciding whether a local repair or broader replacement is appropriate.

Owner-operator Clayton Millions brings industry experience dating to 2010. His work across Vancouver Island has included perimeter drain installation and maintenance, camera inspections, line locating, excavation and foundation damp-proofing. He has also held crew-chief and foreman roles, coordinating people, materials and site work. This background helps connect the condition of a drain with the practical requirements of reaching and repairing it.

A camera inspection may help reveal accessible pipe conditions, but its usefulness depends on access, visibility and the route of the system. Some questions require a targeted test dig or excavation. Clayton explains the proposed investigation and its charge before booking. Photographs, previous repair information and observations made during rainfall are useful starting points for that conversation.

Once the scope is established, work may include opening the affected area, replacing agreed pipe sections, making connections and reinstating drainage stone and backfill. The estimate identifies access, disposal and the surfaces included in restoration. Concrete, garden beds or deck edges may affect the sequence and cost. Hidden conditions are discussed if they change the agreed work.

Fairytale serves Nanaimo, Lantzville, Nanoose Bay, Parksville, Qualicum Beach and Ladysmith. Share where water appears, when it happens and any known access points. Clayton will discuss the next assessment step and explain the proposed repair in a written scope. You can also view our photographed perimeter drainage project to see excavation, foundation exposure, pipework and site restoration at an actual home, including stages normally hidden beneath the finished ground.

Explore our work and services

Drainage services Perimeter drain repair Retaining walls Project gallery About Clayton’s experience

Serving Nanaimo and the mid-Island

While based in Nanaimo, Fairytale Landscaping & Drainage regularly dispatches trucks and equipment for residential drainage, excavation, and retaining wall projects in Lantzville, Nanoose Bay, Parksville, Qualicum Beach, and Ladysmith.

The next step

Get a clearer plan for your drainage.

Send your location, project details and photos through our quote request form, or call Clayton to discuss the work.

Request a quote 250-857-4567

Camera inspections & drainage diagnostics

Inspection packages & pricing

Choose the investigation that fits your property. All prices are in Canadian dollars.

Residential Diagnostic Audit

$450

Includes 1.5 hours on site, cleaning cleanouts, camera deployment, locator tracing and a verbal report. Additional time is billed at $150 per hour.

Request this inspection

Pre-Purchase Real Estate Inspection

$650

Includes drain tile analysis, connection tracking, integrity logs and a digital copy for the client’s designated real estate agent.

Request this inspection

Flush & Inspect Hydro-Jetter Package

$950–$1,250

High-pressure jet flushing followed by a verification camera run. Specialized support is brought in when needed. The package price within this range is confirmed for the agreed scope before booking.

Request this inspection

Camera visibility and coverage depend on access, pipe condition, debris and standing water. We confirm suitability, the scope, applicable taxes and any additional work before booking. A camera inspection reports accessible drain conditions; it does not certify a foundation or replace an engineering assessment.
